RG-IDF28S125-f192 (LED Sensitive Dance Floor)
Read Count:1670
Forward Count:0
Recommand Count:0
  • Product Description
  • Specifications
  • Videos
  • FAQs
  • Downloads

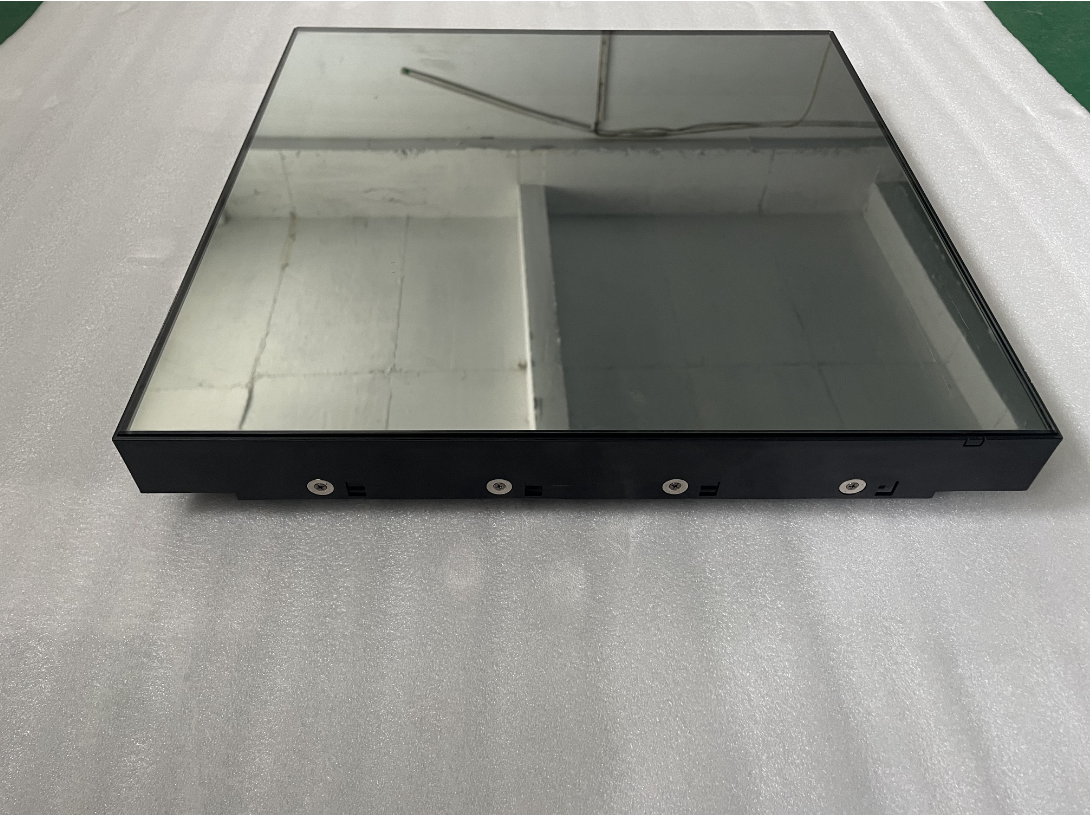

Led interactive dance floor

Size: 50*50*6.7cm(L*W*H)

Pixels pitch: 12.5cm

Sensor qty: 4*4=16

Pixels qty: 4*4=16

Pixel composing: 12 pcs LED per pixel

LED type: F5 single R/G/B

Surface materials: 12mm Tempered Glass

Material of base: Al alloy

Control mode: On-line control

Working temperature: -20℃-40℃

Working humidity: 10-80%

Voltage: DC15V

Average power: 3W

Max power: 16W



Display Effects

1.50 kinds built-in pattern can be displayed.

2.Any format video can be displayed synchronously.

3.The text can be input and displayed



Interactive effects

It can display dynamic pattern by single point contact or impending induction.

1.Colorful dynamic

2.Rotation Tail

3.plum blossom

4.Wave

Product Heading: LED Sensitive Dance Floor
Item No.: RG-IDF28S125-f192
CE No.: RG-527
Unit: pcs
Color: white
Package Type: Plywood
Package Size: 570x640x600
Net Weight(KG): 0.0000
Gross Weight(KG): 0.0000
Sorry, there is not yet uploaded the video related to the product!
